Why Phase Shifting Projection Moiré is the Preferred Method for TDM

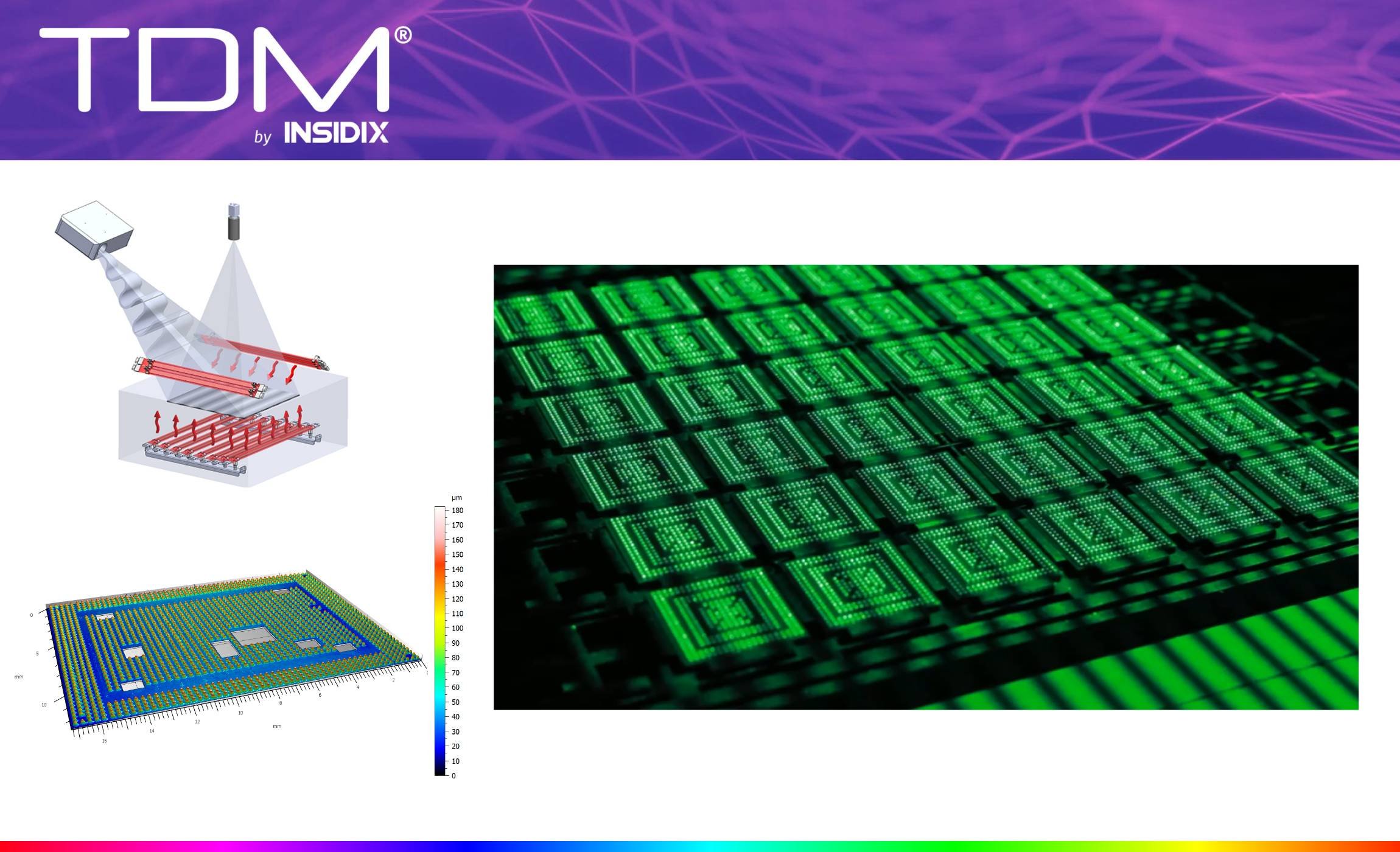

Why Phase Shifting Projection Moiré is the Preferred Method for TDMUnderstanding the BasicsMoiré topography is a well-established optical technique for measuring the 3D shape of surfaces. It works by projecting a grating pattern onto an object and analyzing the resulting interference pattern. Two primary methods are commonly used: Shadow Moiré and Phase Shifting Projection Moiré.

Why Phase Shifting Projection

Moiré is SuperiorWhile both methods offer insights into surface topography, Phase Shifting Projection Moiré has distinct advantages that make it the preferred choice for many integrated systems, including TDM (Topography Deformation Measurement).

1. Enhanced Accuracy and Precision: Digital Phase Shifting:This technique allows for precise measurement of phase shifts, leading to highly accurate height measurements. Advanced Image Processing:Sophisticated algorithms further refine the data, minimizing errors and improving overall precision.

2. Greater Flexibility and Versatility: Adaptability toDifferent Geometries:Phase Shifting Projection Moiré can accommodate a wide range of object shapes and sizes, making it suitable for various applications. Customizable Measurement Requirements:The technique can be easily tailored to specific needs, suchas high-resolution or large-scale measurements.

3. Improved Speed and Efficiency: Faster Data Acquisition:Phase Shifting Projection Moiré often requires fewer measurements, leading to quicker data acquisition times.Efficient Data Processing:Advanced algorithms enable rapid processing of large datasets, streamlining the analysis process.

4. Cost-Effectiveness: Simpler Design:Phase Shifting Projection Moiré systems often have a simpler design, reducing manufacturing costs.Lower Maintenance Requirements:These systems generally require less maintenance, leading to lower operational costs over time.

5. High-Resolution Capabilities: Sub-Micron Resolution:TDM systems utilizing Phase Shifting Projection Moiré can achieve resolutions below 1 micrometer, enabling detailed surface analysis.

Phase Shifting Projection Moiré offers a compelling combination of accuracy, flexibility, speed, and cost-effectiveness,making it the ideal choice for warpage measurement applications. By understanding the underlying principles and the advantages it offers over traditional methods like Shadow Moiré, we can leverage this powerful technique to unlock new insights into the 3Dworld
