Advancing Heterogeneous Integration with FOPLP: The Critical Role of Warpage Measurement
The Rise of Fan-Out Wafer-Level Packaging (FO-WLP)
Fan-Out Wafer-Level Packaging (FO-WLP) has emerged as a significant technology that facilitates advanced heterogeneous integration. By providing higher density, enhanced performance, and lower production costs, FOPLP is transforming the design and construction of intricate electronic systems.
The Challenge of Warpage
One of the major challenges associated with FOPLP is the management of warpage, which can greatly influence device performance and reliability. Warpage can occur due to several factors, including the mismatch in thermal expansion between various materials, variations in the manufacturing process, and the stress that naturally develops during assembly.
The Role of TDM in Addressing Warpage

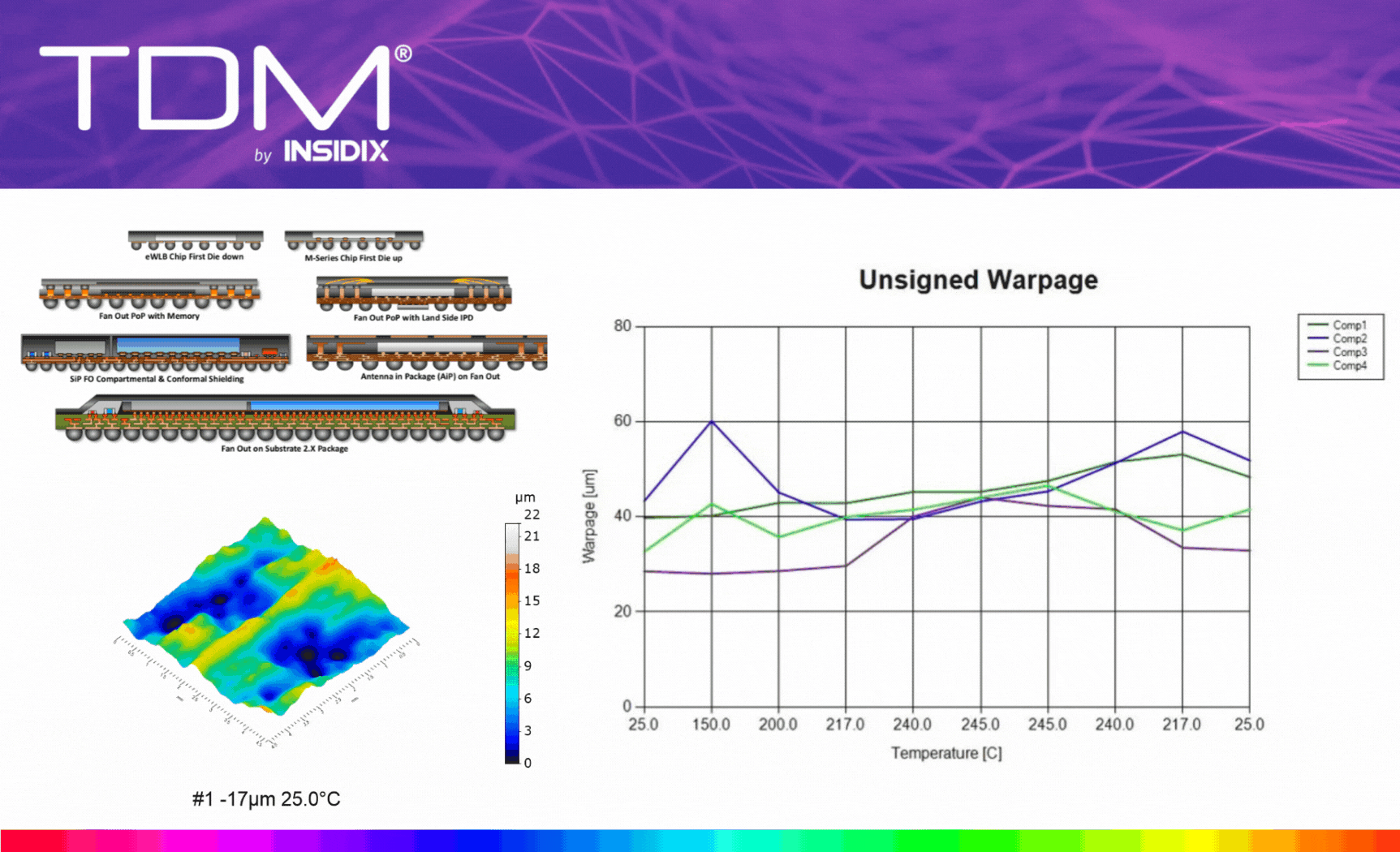

Topography Deformation Measurement (TDM) systems, such as those provided by Insidix, are vital for tackling warpage issues in FOPLP. By delivering accurate measurements of surface deformation, TDM systems enable engineers to:
Identify Warpage Sources: Determine the underlying causes of warpage, like material mismatches, process variations, or design defects
Optimize Manufacturing Processes: Adjust manufacturing methods to reduce warpage and enhance yield.
Validate Design Changes: Assess how design modifications influence warpage and other performance indicators.
Ensure Long-Term Reliability: Evaluate the durability of FOPLP devices by trackingwarpage under accelerated aging scenario
Case Study: FOPLP Warpage Reduction
Recent studies have shown the success of TDM in mitigating warpage problems in FOPLP. By utilizing TDM systems to examine the warpage characteristics of FOPLP devices, researchers were able to detect critical factors contributing to warpage and apply strategies to alleviate these issues.
Some of the main findings include:
Interposer Material Optimization: Choosing materials with improved thermal expansion compatibilityresulted in a significant decrease in warpage
Process Optimization: Enhancements to molding and curing processes were found to lower warpage and elevate device reliability.
Design Improvements: Refining the design of the RDL and bump structures can help in reducing stress and strain, leading to diminished warpage.
The TDM systems serve as essential instruments for guaranteeing the success of FOPLP and other advanced packaging technologies. By offering precise and dependable warpage measurements, TDM helps engineers optimize the design, manufacturing, and testing of these sophisticated devices. As the semiconductor industry continues to advance the limits of miniaturization and integration, TDM will remain an indispensable tool for ensuring the reliability and performance of future electronic systems.
